SGL-Mini Laser

SINGLE WAVELENGTH

EBrochure >

The SGL-Mini offers a single wavelength high intensity laser light at 445nm and 520nm wavelengths.

Technical Details:

• Single wavelength choice of either 445nm or 532nm
• Radiant power from this class 4 laser:
    > 10W @ 445nm
    > 4W @ 520nm
• Weight: 1.8kg
• Size (mm):
    > 265 x 50 x 100
• Cordless operation
• Battery: 12.6 / 10.5Ah lithium (445nm)
• Batte
ry life: 240 minutes continuous use
• Supply Voltage: 110v – 240v


Minimum 3-500 charge cycles
Deadmans finger and Remote Interlock

Additional options:
DBL-Mini or DB-Ultra
Enables specific enhancement for the detection and inspection of:
Biological stains and body fluids
Hair and Fibres
Skin-prints/marks
Blood
Bone/teeth
Gunshot Residue

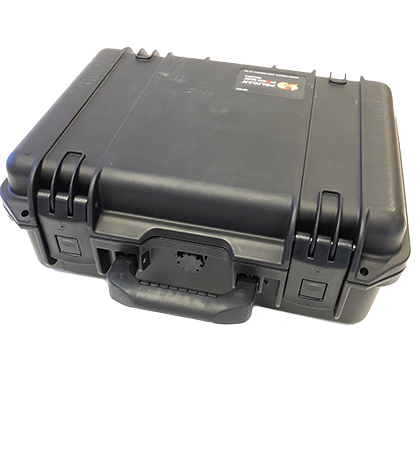

Supplied with: protective foam lined case, 1 pair each of appropriate goggles, camera filters and charger

Warranty Period: 2 years

The pictures show, blood, semen and a fingerprint, found using the SGL-Mini 532nm wavelength



Case study 1   Case study 4   Case study 6
