DB-Ultra+ Forensic Class 4 Laser


EBrochure >

Available as a two way switchable laser of compact design with the portability required to carry to the scene of a crime.  The product has a high specification lens to maximise the see through clarity.

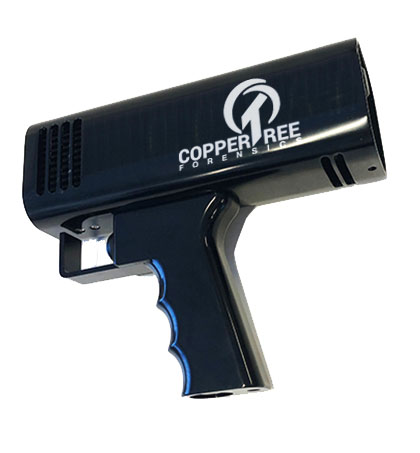

The DB-Ultra+  is a high-powered hand held Laser, the size of a smartphone, with trigger and battery pack to extend the usable time between recharging. The trigger pack is an ergonomic design that eases the use of the device

Technical Details:
• Switchable wavelength of 445nm and 520nm
• Radiant power from this class 4 laser, with a choice of 4 power units;
    > 6W @ 445nm and 2W @ 520nm
    > 1 0W @ 445nm and 3W @ 520nm
• Weight: 0.95 kg
• Size(mm): 182x55x65
• Cordless operation
• Battery: 16.8v / 2.6Ah lithium
• Supply Voltage: 110v – 240v

Minimum 3-500 charge cycles
Deadmans finger and Remote Interlock

Additional options:
Enables enhancement for the detection and inspection of: Biological stains and body fluids
Hair and Fibres
Gunshot Residue

Supplied with: protective foam lined case, 1 pair each of appropriate goggles, camera filters,
charger and extra batteries

Warranty Period: 2 years

These pictures are from a  pig decomposition study using the;
FIT-LED-Blue and DVI-LED 445nm, 520nm and 530nm wavelengths
